Positive fixed output voltage regulator, 5V, with a 1.5A maximum output current and a low 330mV dropout voltage. Features 2% accuracy, 120µA input bias current, and 220µA quiescent current. Operates from a 2.3V to 6V input voltage range, with a wide temperature range of -40°C to 125°C. Packaged in a TO-263 surface-mount case, this lead-free component is RoHS compliant.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1827-5002E/ET technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-263 |
| Dropout Voltage | 330mV |
| Height | 0.19inch |
| Input Bias Current | 120uA |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 220uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 0.447inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1827-5002E/ET Datasheet
Download the complete datasheet for Microchip MCP1827-5002E/ET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

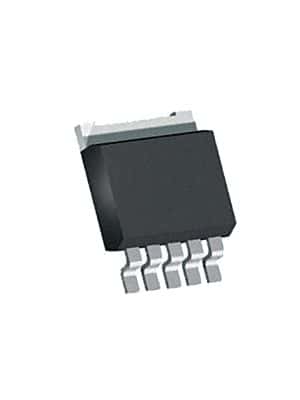

Product Images
