Adjustable positive LDO regulator, 1.5A output current, 0.6V dropout voltage. Features a 0.8V to 5V adjustable output voltage with 2% accuracy. Operates from a 2.3V to 6V input voltage range. Packaged in a TO-263 (DDPAK-5) surface-mount case. RoHS compliant and lead-free.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1827-ADJE/ET technical specifications.
General
Accuracy
2%
Package/Case
TO-263
Dropout Voltage
330mV
Height
0.19inch
Input Bias Current
120uA
Lead Free
Lead Free
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
5V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
5V
Output Voltage Accuracy
2%
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
410mV
RoHS Compliant
Yes
Width
0.447inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1827-ADJE/ET Datasheet
Download the complete datasheet for Microchip MCP1827-ADJE/ET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

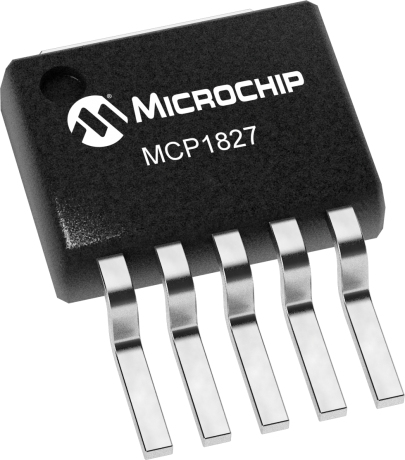

Product Images
