1.2V fixed positive LDO regulator with 1.5A output current and 330mV dropout voltage. Features 2% output voltage accuracy, 6V maximum input voltage, and a TO-220 package for through-hole mounting. Operates across a -40°C to 125°C temperature range. RoHS compliant and lead-free.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1827S-1202E/AB technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
330mV
Height
0.355inch
Input Bias Current
120uA
Lead Free
Lead Free
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Mount
Through Hole
Nominal Output Voltage
1.2V
Number of Outputs
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.2V
Output Voltage Accuracy
2%
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.19inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1827S-1202E/AB Datasheet
Download the complete datasheet for Microchip MCP1827S-1202E/AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

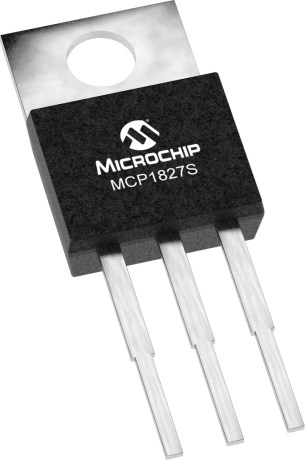

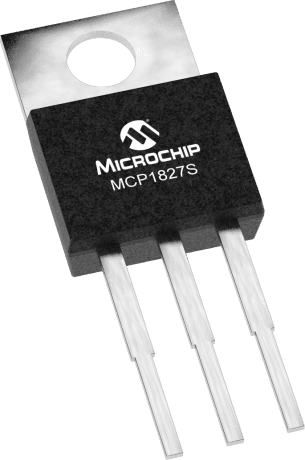

Product Images
