Microchip

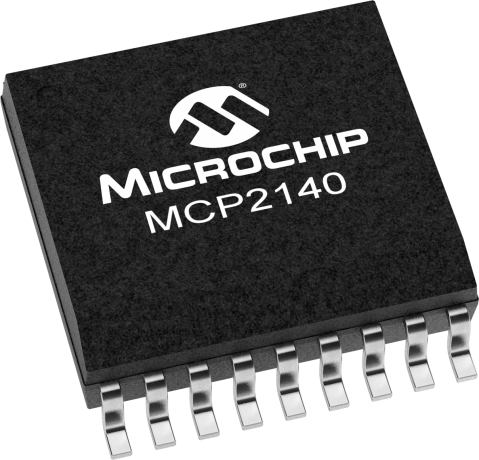

MCP2140-I/SO
IrDA Standard Protocol Stack Controller UART Interface 3.3V/5V 18-Pin SOIC W Tube

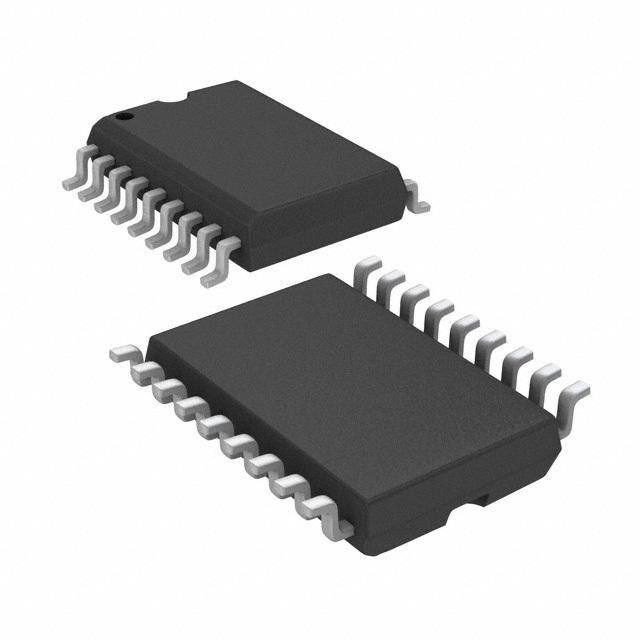

PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP2140-I/SO technical specifications.
General
Package/Case
SOIC
Data Rate
9.6Kbps
Height
0.094inch
Interface
UART
Lead Free
Lead Free
Length
0.461inch
Logic Function
Decoder
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Nominal Supply Current
2.2mA
Number of Transceivers
2
Operating Supply Voltage
5.5V
Package Quantity
42
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Width
0.299inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP2140-I/SO Datasheet
Download the complete datasheet for Microchip MCP2140-I/SO to view detailed technical specifications.
