Microchip
MCP2200-I/MQ
USB 2.0 to UART Protocol Converter with GPIO UART Interface 3.3V/5V Automotive 20-Pin QFN EP Tube
PackageQFN
Current15mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP2200-I/MQ technical specifications.
General
Package/Case
QFN
Data Rate
12Mbps
ESD Protection
Yes
Height
0.88mm
Interface
UART
Lead Free
Lead Free
Length
5mm
Logic Function
Buffer
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
1
Number of Transceivers
1
Operating Supply Current
13mA
Package Quantity
73
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
15mA
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP2200-I/MQ Datasheet
Download the complete datasheet for Microchip MCP2200-I/MQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

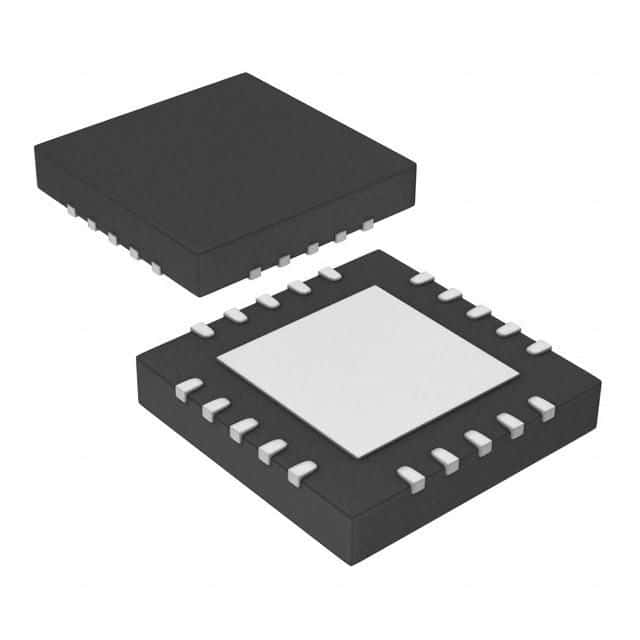

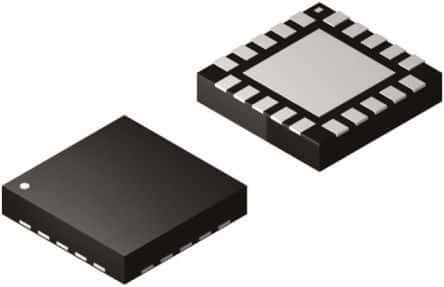

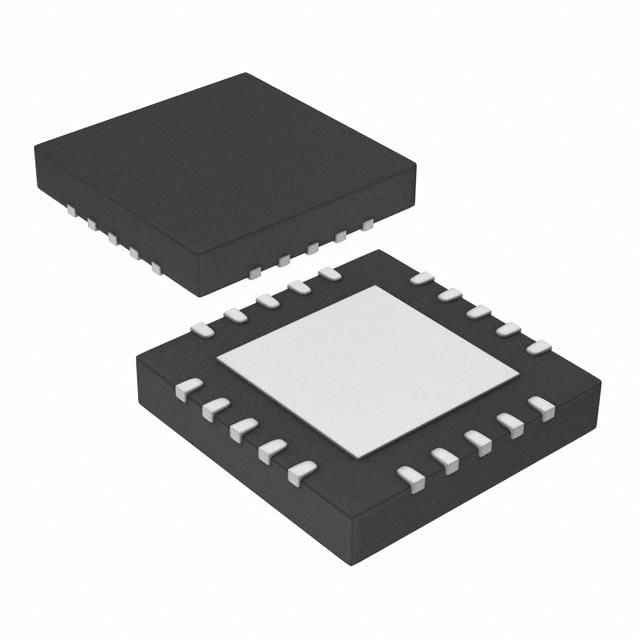

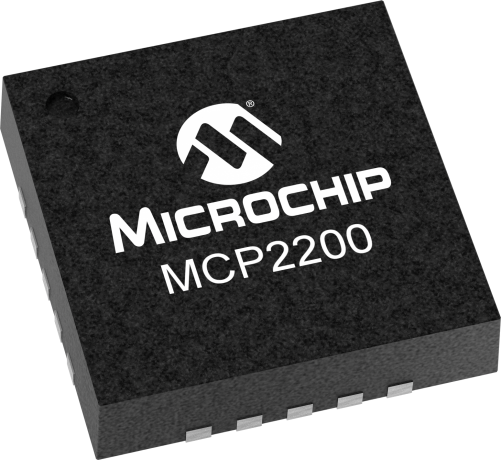

Product Images
