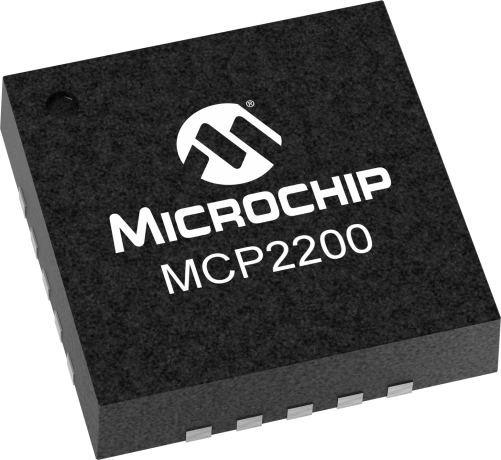

The MCP2200T-I/MQ is a UART transceiver with a data rate of 12Mbps and a single channel. It features ESD protection and is lead free. The device is designed for surface mount applications and is packaged in a QFN package. It operates over a temperature range of -40°C to 85°C and has a maximum supply voltage of 5.5V. The MCP2200T-I/MQ is RoHS compliant and suitable for use in general applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP2200T-I/MQ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP2200T-I/MQ technical specifications.

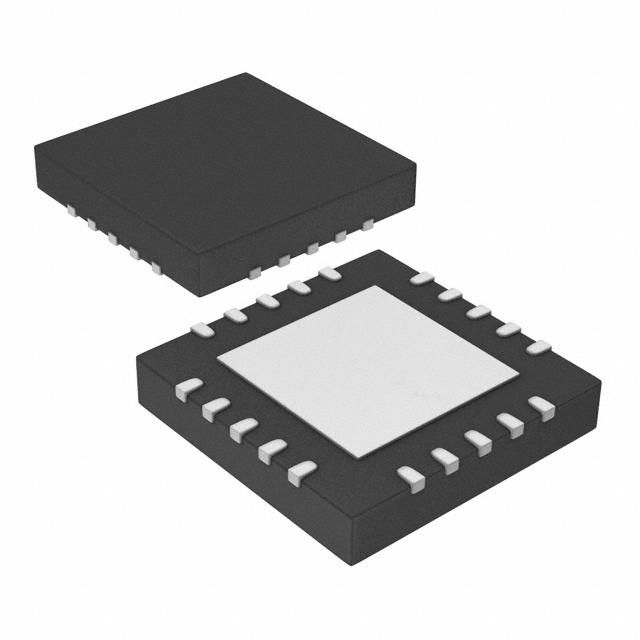

| Package/Case | QFN |
| Data Rate | 12Mbps |
| ESD Protection | Yes |
| Height | 0.9mm |
| Interface | UART |
| Lead Free | Lead Free |
| Length | 5mm |
| Logic Function | Buffer |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Operating Supply Current | 13mA |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Width | 5mm |
| RoHS | Compliant |
