8-bit I/O Expander featuring an I2C interface with a maximum frequency of 1.7MHz. This serial interface IC operates at a supply voltage of 5.5V and offers 8 push-pull output channels. Designed for a wide temperature range from -40°C to 125°C, it is RoHS compliant and lead-free. Packaged in a 20-pin SSOP, it is supplied on tape and reel.
Frequency1.7MHz
PackageSSOP
Current1mA
Power700mW
Quick Jump:
Technical Specifications
Microchip MCP23008T-E/SS technical specifications.
General
| Package/Case | SSOP |
| Frequency | 1.7MHz |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Frequency | 1.7MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Channels | 1 |
| Number of I/Os | 8 |
| Operating Supply Voltage | 5.5V |
| Output Type | PUSH-PULL |
| Package Quantity | 1600 |
| Packaging | Tape and Reel |
| Power Dissipation | 700mW |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Supply Voltage-Nom | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP23008T-E/SS Datasheet
Download the complete datasheet for Microchip MCP23008T-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

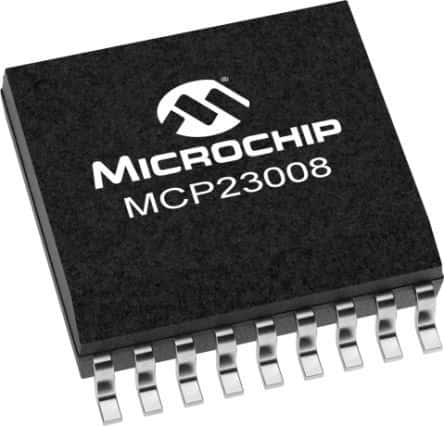

Product Images
