16-bit I/O Expander with I2C and Serial interface, operating up to 1.7MHz. Features 16 configurable I/O pins, 25mA output current with PUSH-PULL output type, and a wide operating voltage range of 1.8V to 5.5V. Encased in a 28-pin SOIC package for surface mount applications, this component offers a maximum power dissipation of 700mW and operates between -40°C and 125°C. RoHS compliant and lead-free.
Frequency1.7MHz
PackageSOIC
Voltage5V
Current1mA
Quick Jump:
Technical Specifications
Microchip MCP23017-E/SO technical specifications.
General
| Package/Case | SOIC |
| Frequency | 1.7MHz |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Frequency | 1.7MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 700mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount, Through Hole |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of I/Os | 16 |
| Output Current | 25mA |
| Output Type | PUSH-PULL |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Supply Voltage-Nom | 5.5V |
| Voltage | 5V |
| Weight | 0.078125oz |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP23017-E/SO Datasheet
Download the complete datasheet for Microchip MCP23017-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

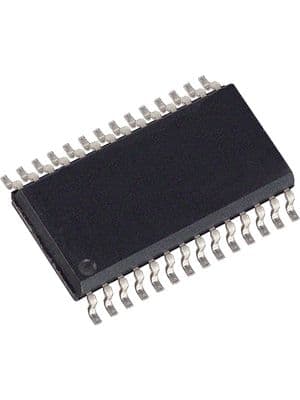

Product Images
