16-bit I/O expander with I2C and serial interface, operating up to 1.7MHz. Features 16 configurable I/Os, push-pull output type, and 25mA output current. Operates from a 4.5V to 5.5V supply voltage range with a maximum power dissipation of 700mW. Packaged in a 28-pin SSOP for surface mounting, this RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
Frequency1.7MHz
PackageSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP23017-E/SS technical specifications.
General
| Package/Case | SSOP |
| Frequency | 1.7MHz |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Frequency | 1.7MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 700mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of I/Os | 16 |
| Output Current | 25mA |
| Output Type | PUSH-PULL |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Supply Voltage-Nom | 5.5V |
| Weight | 0.080001oz |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP23017-E/SS Datasheet
Download the complete datasheet for Microchip MCP23017-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

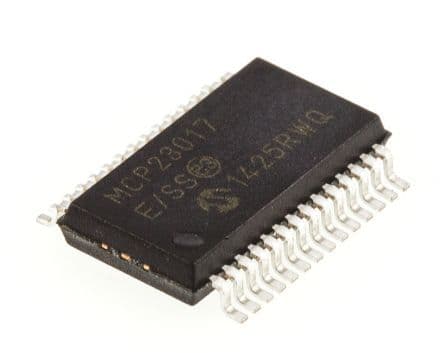

Product Images
