16-bit I/O Expander with I2C and Serial interface, operating at up to 1.7MHz. This surface mount component features 16 configurable I/Os, push-pull output type, and a maximum output current of 25mA. It supports a wide operating supply voltage range from 1.8V to 5.5V, with a nominal voltage of 5.5V. Packaged in a 28-pin SSOP, this lead-free, RoHS compliant device operates from -40°C to 125°C.
Frequency1.7MHz
PackageSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP23017T-E/SS technical specifications.
General
| Package/Case | SSOP |
| Frequency | 1.7MHz |
| Height | 2mm |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Frequency | 10MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of I/Os | 16 |
| Operating Supply Voltage | 5.5V |
| Output Current | 25mA |
| Output Type | PUSH-PULL |
| Package Quantity | 2100 |
| Packaging | Tape and Reel |
| Power Dissipation | 700mW |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Supply Voltage-Nom | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP23017T-E/SS Datasheet
Download the complete datasheet for Microchip MCP23017T-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

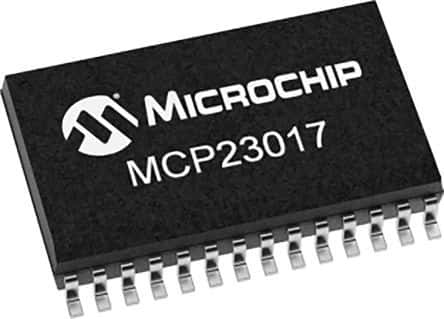

Product Images
