16-bit SPI I/O expander with 16 general-purpose I/O pins. Features a serial SPI interface operating up to 10MHz and a maximum supply voltage of 5.5V. Offers push-pull output type with 25mA output current. Packaged in a 28-pin QFN for surface mounting, this RoHS compliant component operates from -40°C to 125°C.
Frequency10MHz
PackageQFN
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP23S17T-E/ML technical specifications.
General
| Package/Case | QFN |
| Frequency | 10MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Frequency | 10MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of I/Os | 16 |
| Operating Supply Voltage | 5.5V |
| Output Current | 25mA |
| Output Type | PUSH-PULL |
| Package Quantity | 1600 |
| Packaging | Tape and Reel |
| Power Dissipation | 700mW |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Supply Voltage-Nom | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP23S17T-E/ML Datasheet
Download the complete datasheet for Microchip MCP23S17T-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

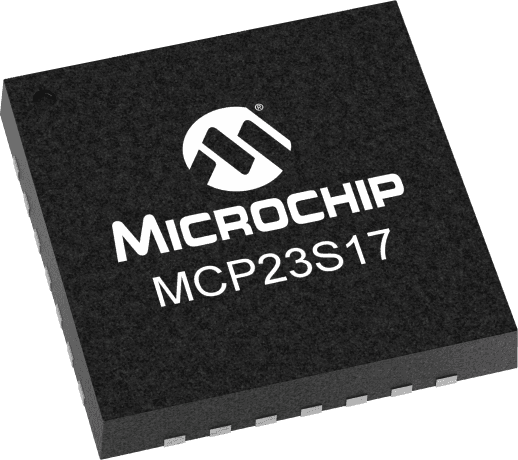

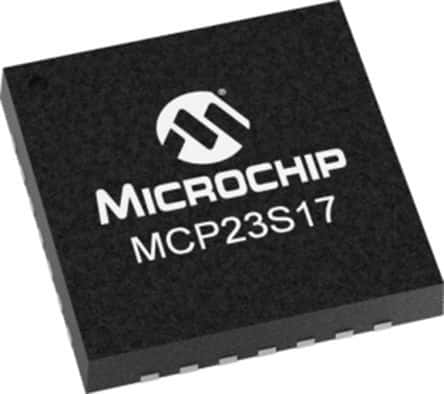

Product Images
