16-bit SPI I/O Expander, surface mountable in a 28-pin SOIC package. Operates with a supply voltage range of 4.5V to 5.5V, featuring a maximum frequency of 10MHz. Offers 16 configurable I/O pins with push-pull output type. This RoHS compliant component is supplied on tape and reel with a package quantity of 1600.
Frequency10MHz
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP23S17T-E/SO technical specifications.
General
| Package/Case | SOIC |
| Frequency | 10MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Frequency | 10MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of I/Os | 16 |
| Output Type | PUSH-PULL |
| Package Quantity | 1600 |
| Packaging | Tape and Reel |
| Power Dissipation | 700mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Supply Voltage-Nom | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP23S17T-E/SO Datasheet
Download the complete datasheet for Microchip MCP23S17T-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

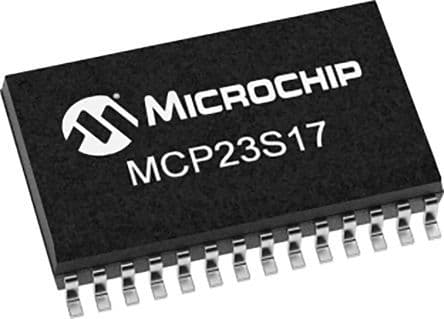

Product Images
