Frequency10MHz
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP23S18-E/SO technical specifications.
General
Package/Case
SOIC
Frequency
10MHz
Interface
SPI, Serial
Lead Free
Lead Free
Max Frequency
3.4MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
1
Number of I/Os
16
Output Current
25mA
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1mA
Supply Voltage-Nom
5.5V
Weight
0.078125oz
Compliance
RoHS
Compliant
Datasheet
Microchip MCP23S18-E/SO Datasheet
Download the complete datasheet for Microchip MCP23S18-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

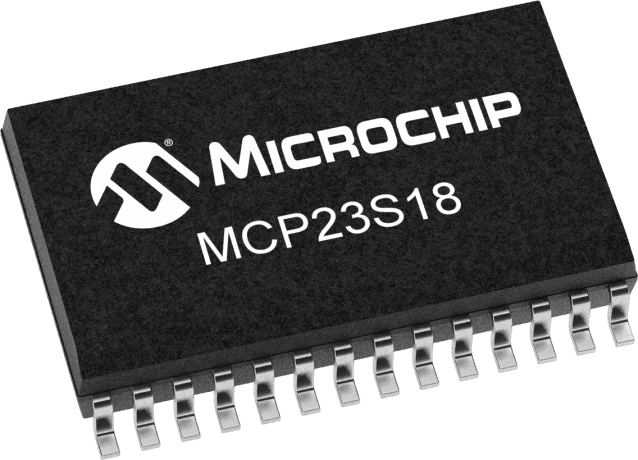

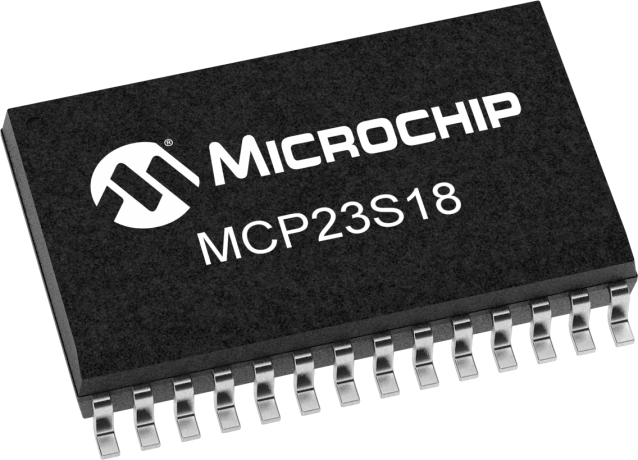

Product Images
