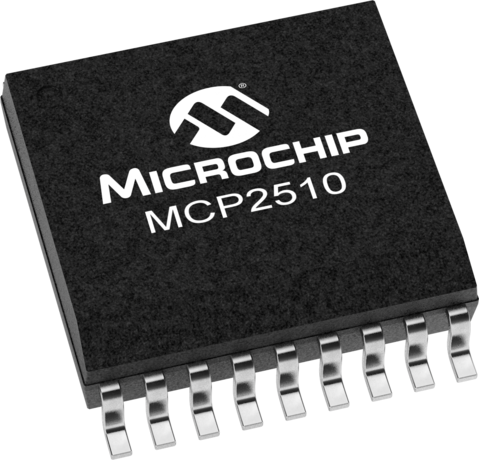

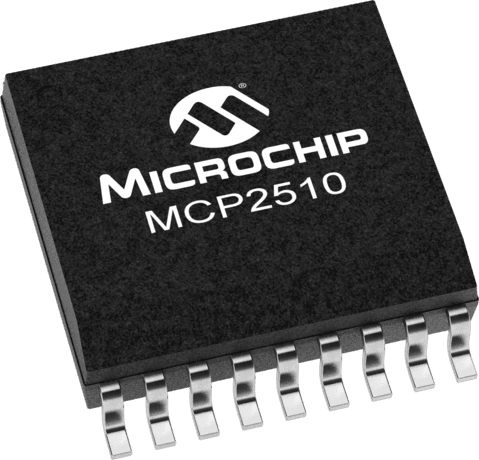

The MCP2510-E/SO is a 5Mbps SPI interface IC from Microchip, packaged in a 0.300 inch plastic SOIC-18. It operates over a temperature range of -40°C to 125°C and is powered by a supply voltage between 3V and 5.5V. The device is lead free and RoHS compliant, suitable for surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP2510-E/SO datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP2510-E/SO technical specifications.
| Package/Case | SOIC W |
| Data Rate | 5Mbps |
| Height | 2.31mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 11.53mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 10mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Width | 7.49mm |
| RoHS | Compliant |
