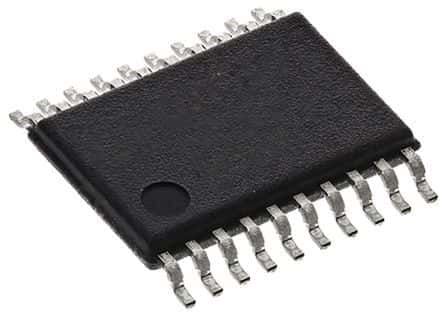

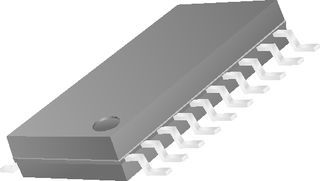

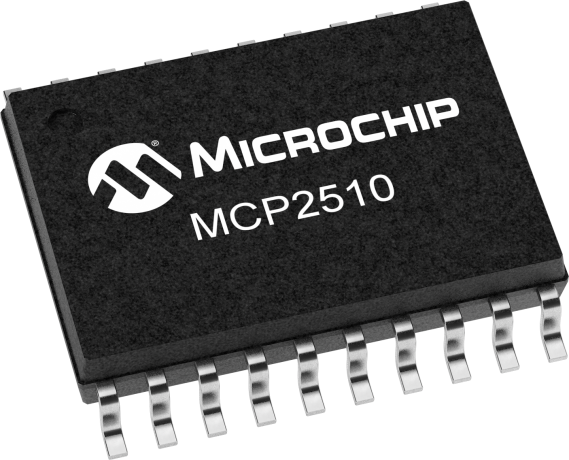

This surface mountable CAN controller IC offers a 5Mbps data rate and 5MHz frequency, featuring SPI and Serial interfaces. It includes 2 receive buffers and 3 transmit buffers, with 1 timer/counter and 1 transceiver. Operating from a 3V to 5.5V supply voltage, this 20-pin TSSOP package component has a maximum supply current of 10mA and operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP2510-I/ST datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP2510-I/ST technical specifications.
| Package/Case | TSSOP |
| Data Rate | 5Mbps |
| Frequency | 5MHz |
| Height | 0.9mm |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 10mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of I/Os | 16 |
| Number of Receive Buffers | 2 |
| Number of Timers/Counters | 1 |
| Number of Transceivers | 1 |
| Number of Transmit Buffers | 3 |
| Operating Supply Voltage | 5V |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Supply Current | 10mA |
| Supply Voltage-Nom | 5.5V |
| Width | 4.4mm |
| RoHS | Compliant |
