1Mbps CAN controller with SPI interface, supporting 1 transceiver. This surface mountable SOIC package operates from a 3V to 5.5V supply voltage, with a nominal 5V, and features a data rate up to 5Mbps. It is RoHS compliant and lead-free, with an operating temperature range of -40°C to 85°C.
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP2510T-I/SO technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 5Mbps |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1100 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Supply Voltage-Nom | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP2510T-I/SO Datasheet
Download the complete datasheet for Microchip MCP2510T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

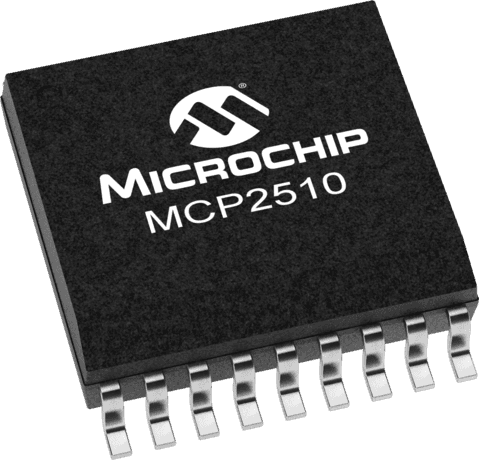

Product Images
