CAN controller IC with 1Mbps data rate, supporting SPI and CAN interfaces. Features include 3 transmit buffers, 2 receive buffers, and a single transceiver. Operates from 2.7V to 5.5V supply voltage with a maximum supply current of 10mA. Packaged in a 20-pin TSSOP for surface mounting, with dimensions of 6.5mm length, 4.4mm width, and 0.9mm height. RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackageTSSOP
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP2515-I/ST technical specifications.
General
Package/Case
TSSOP
Data Rate
1Mbps
Height
0.9mm
Interface
SPI, CAN
Lead Free
Lead Free
Length
6.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
10mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Drivers
1
Number of Receive Buffers
2
Number of Receivers
1
Number of Transceivers
1
Number of Transmit Buffers
3
Operating Supply Voltage
5V
Package Quantity
74
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10mA
Supply Voltage-Nom
5.5V
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP2515-I/ST Datasheet
Download the complete datasheet for Microchip MCP2515-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

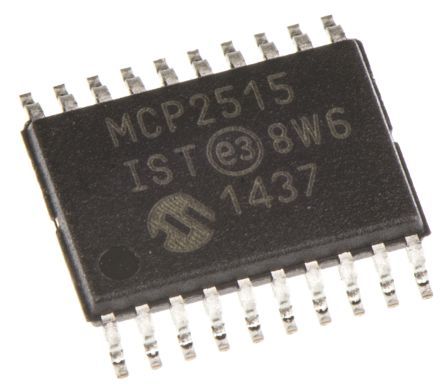

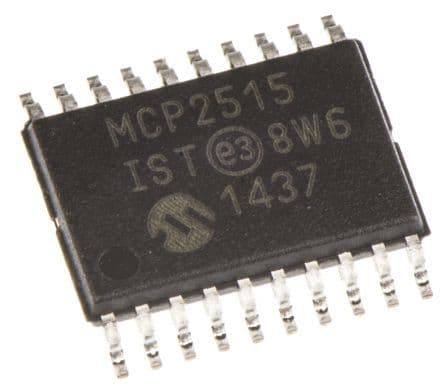

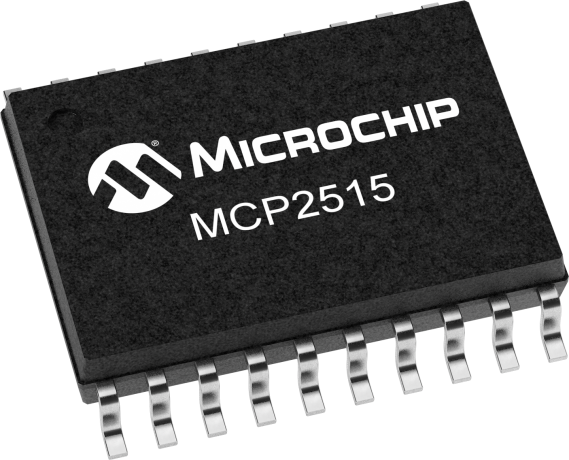

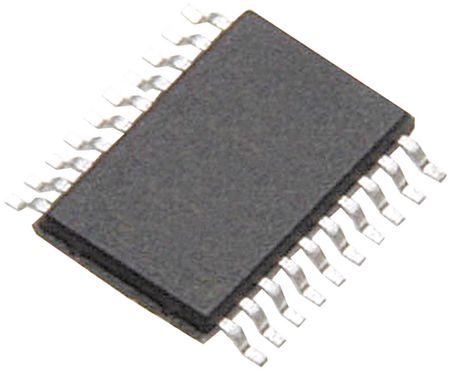

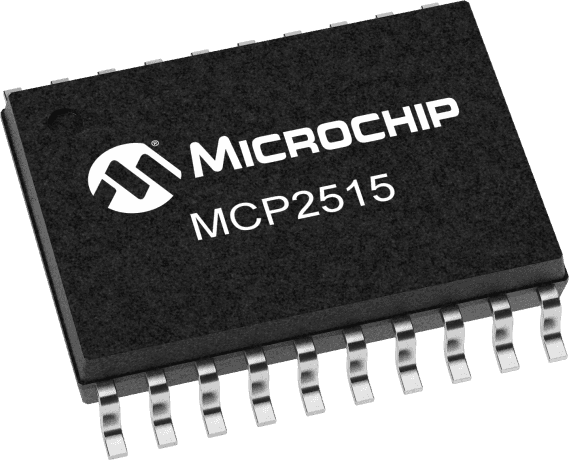

Product Images
