CAN transceiver IC, supporting 1Mbps data rates and half-duplex communication. Features a 5V operating supply voltage with a range of 4.5V to 5.5V. Operates across a temperature range of -40°C to 85°C. This surface mount component is housed in an 8-pin SOIC package, measuring 4.9mm in length, 3.9mm in width, and 1.5mm in height. Includes one driver, one receiver, and one transceiver, with a maximum supply current of 75mA. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP2551T-I/SN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP2551T-I/SN technical specifications.
| Package/Case | SOIC |
| Data Rate | 1Mbps |
| Height | 1.5mm |
| Interface | CAN, Serial |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 75mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Functions | 1 |
| Number of Receive Buffers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmit Buffers | 1 |
| Operating Supply Voltage | 5V |

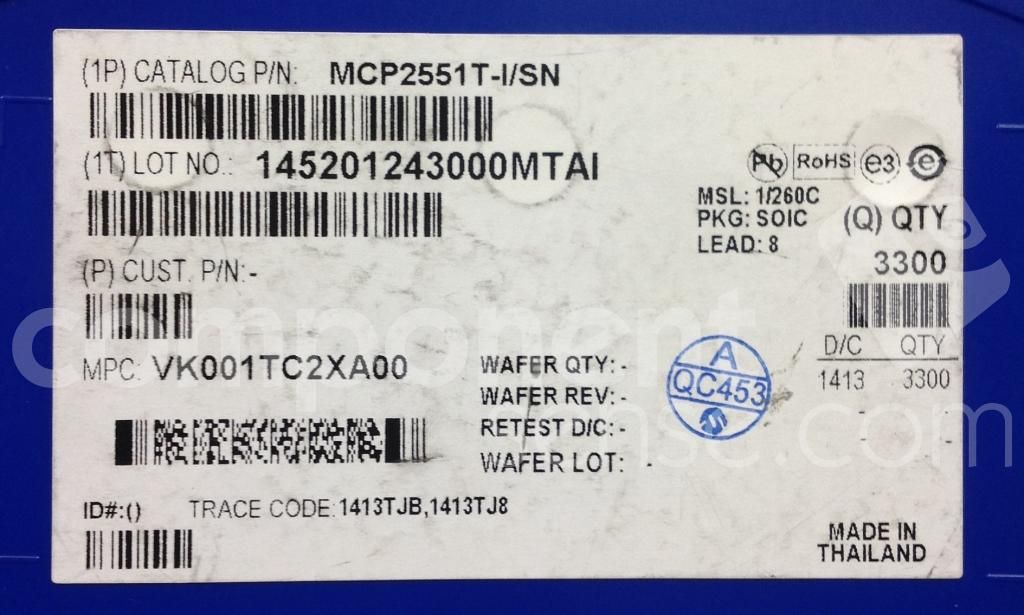

| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 200mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Half Duplex |
| Supply Current | 75mA |
| Supply Voltage-Nom | 5.5V |
| Width | 3.9mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip MCP2551T-I/SN to view detailed technical specifications.
