10-bit, 2-channel Analog-to-Digital Converter (ADC) with a 200 kS/s conversion rate. Features include 1 LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL), SPI serial interface, and single-ended input type. Operates with a supply voltage range of 2.7V to 5.5V. Packaged in a through-hole PDIP with dimensions of 9.27mm (L) x 6.35mm (W) x 3.3mm (H). RoHS compliant and suitable for automotive applications.
PackagePDIP
Current525uA
MountingThrough Hole
PolarityUnipolar
Quick Jump:
Technical Specifications
Microchip MCP3002-I/P technical specifications.
General
Package/Case
PDIP
Conversion Rate
200KS/s
Differential Nonlinearity
1LSB
Height
3.3mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial
Lead Free
Lead Free
Length
9.27mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of A/D Converters
1
Number of Bits
10
Number of Channels
2
Number of Converters
1
Number of Elements
1
Operating Supply Voltage
5V
Output Voltage
7V
Package Quantity
60
Packaging
Rail/Tube
Polarity
Unipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
200KS/s
Signal to Noise Ratio (SNR)
61dB
Supply Current
525uA
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3002-I/P Datasheet
Download the complete datasheet for Microchip MCP3002-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

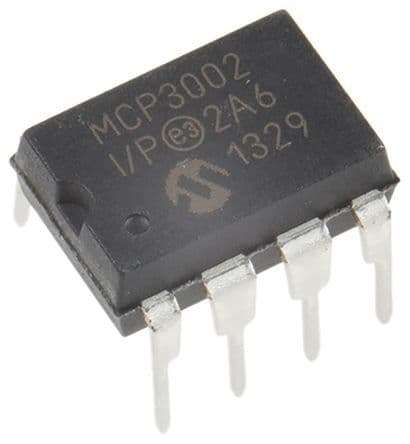

Product Images
