8-channel, 10-bit Analog-to-Digital Converter (ADC) with a 200 kS/s conversion rate. Features single-ended inputs, SPI serial interface, and 1 LSB integral and differential nonlinearity. Operates from a 2.7V to 5.5V supply, with a temperature range of -40°C to 85°C. Packaged in a 16-pin SOIC surface-mount case.
PackageSOIC
Current425uA
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Microchip MCP3008-I/SL technical specifications.
General
Package/Case
SOIC
Conversion Rate
200KS/s
Differential Nonlinearity
1LSB
Height
0.049inch
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial, 4-WIRE
Lead Free
Lead Free
Length
0.389inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
10
Number of Channels
8
Number of Converters
1
Number of Elements
1
Number of Inputs
8
Output Voltage
4.1V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Unipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
200KS/s
Signal to Noise Ratio (SNR)
200dB
Supply Current
425uA
Width
0.154inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3008-I/SL Datasheet
Download the complete datasheet for Microchip MCP3008-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

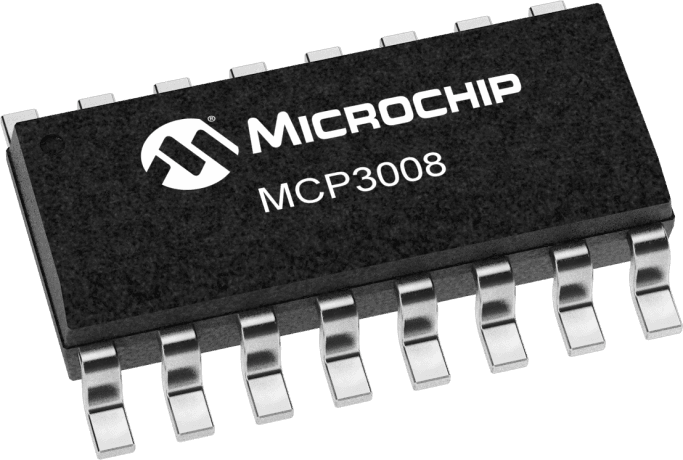

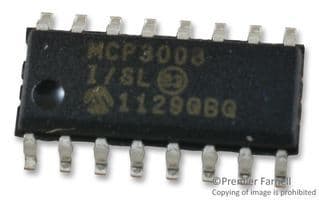

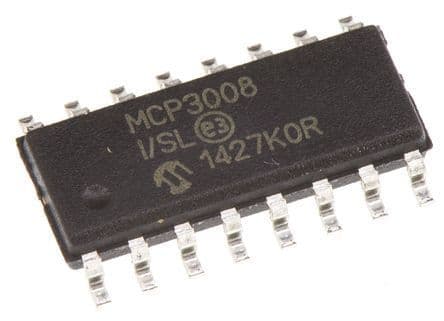

Product Images
