10-bit, 1-channel Analog-to-Digital Converter (ADC) with a 22.3 kSps sampling rate. Features single-ended input, 1 LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL), and a 60dB Signal-to-Noise Ratio (SNR). Operates with a supply voltage range of 2.7V to 5.5V and a supply current of 175uA. Supports I2C, Serial, and SPI interfaces. Packaged in a 5-pin SOT-23 for surface mounting, with a temperature range of -40°C to 125°C.
PackageSOT-23
Current175uA
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Microchip MCP3021A5T-E/OT technical specifications.
General
Package/Case
SOT-23
Conversion Rate
22.3KS/s
Differential Nonlinearity
1LSB
Height
0.051inch
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
I2C, Serial, SPI
Lead Free
Lead Free
Length
0.122inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
10
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Output Voltage
400mV
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Unipolar
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
22.3KS/s
Signal to Noise Ratio (SNR)
60dB
Supply Current
175uA
Termination
SMD/SMT
Width
0.069inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3021A5T-E/OT Datasheet
Download the complete datasheet for Microchip MCP3021A5T-E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

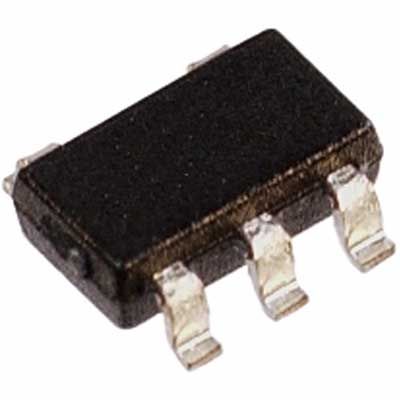

Product Images
