12-bit, 1-channel Analog-to-Digital Converter (ADC) with a 100 kS/s sampling rate. Features single-ended input, SPI serial interface, and unipolar polarity. Operates from a 2.7V to 5.5V supply with a nominal current of 300µA. Integral nonlinearity is 1 LSB, and Signal-to-Noise Ratio is 72dB. Packaged in an 8-pin PDIP for through-hole mounting.
PackagePDIP
MountingThrough Hole
PolarityUnipolar
Quick Jump:
Technical Specifications
Microchip MCP3201-BI/P technical specifications.
General
Package/Case
PDIP
Conversion Rate
100KS/s
Height
3.3mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial
Lead Free
Lead Free
Length
9.27mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Nominal Supply Current
300uA
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Package Quantity
60
Packaging
Rail/Tube
Polarity
Unipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Signal to Noise Ratio (SNR)
72dB
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3201-BI/P Datasheet
Download the complete datasheet for Microchip MCP3201-BI/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

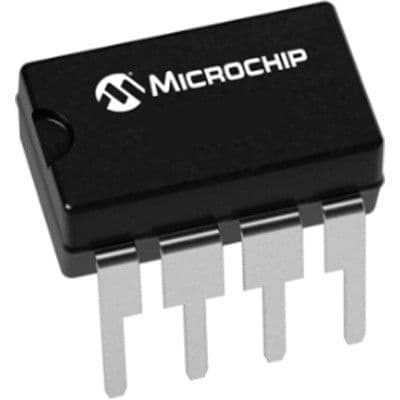

Product Images
