12-bit, 1-channel Analog-to-Digital Converter (ADC) with a 100 kS/s sampling rate. Features SPI serial interface, single-ended input, and unipolar operation. Offers 1 LSB differential nonlinearity and 2 LSB integral nonlinearity. Operates from a 2.7V to 5.5V supply, with a maximum operating temperature of 85°C. Packaged in an 8-pin SOIC for surface mounting.
PackageSOIC
Voltage7V
Current300uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP3201-CI/SN technical specifications.
General
Package/Case
SOIC
Conversion Rate
100KS/s
Converter Type
GENERAL PURPOSE
Differential Nonlinearity
1LSB
Full Scale Error
5LSB
Height
1.25mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
2LSB
Interface
SPI, Serial
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Package Quantity
100
Packaging
Rail/Tube
Polarity
Unipolar
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Signal to Noise Ratio (SNR)
72dB
Supply Current
300uA
Supply Type
Single
Voltage
7V
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3201-CI/SN Datasheet
Download the complete datasheet for Microchip MCP3201-CI/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

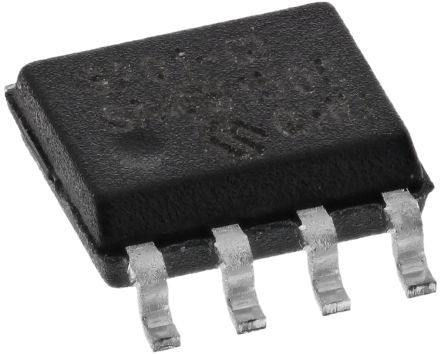

Product Images
