12-bit, 2-channel Analog-to-Digital Converter (ADC) with a 100kS/s sampling rate. Features include 1LSB Differential Nonlinearity, 2LSB Integral Nonlinearity, and 72dB Signal-to-Noise Ratio. Operates with a 2.7V to 5.5V supply voltage and a serial SPI interface. This unipolar, through-hole component is housed in an 8-pin PDIP package.
PackagePDIP
Current375uA
MountingThrough Hole
PolarityUnipolar
Quick Jump:
Technical Specifications
Microchip MCP3202-CI/P technical specifications.
General
Package/Case
PDIP
Conversion Rate
100KS/s
Differential Nonlinearity
1LSB
Height
3.3mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
2LSB
Interface
SPI, Serial
Lead Free
Lead Free
Length
9.27mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of A/D Converters
1
Number of Bits
12
Number of Channels
2
Number of Converters
1
Number of Elements
1
Number of Inputs
2
Package Quantity
60
Packaging
Rail/Tube
Polarity
Unipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Signal to Noise Ratio (SNR)
72dB
Supply Current
375uA
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3202-CI/P Datasheet
Download the complete datasheet for Microchip MCP3202-CI/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

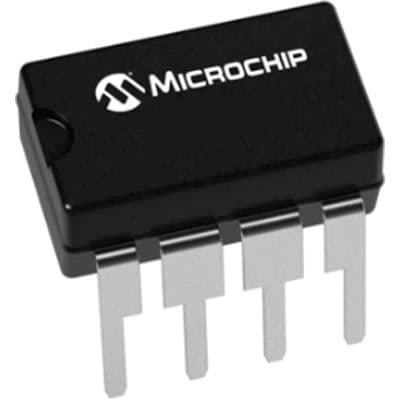

Product Images
