12-bit, 2-channel Analog-to-Digital Converter (ADC) with a 100 kS/s sampling rate. Features single-ended inputs and SPI serial interface. Operates from a 2.7V to 5.5V supply with a nominal current of 375µA. Offers 72dB Signal-to-Noise Ratio (SNR) and 2 LSB Integral Nonlinearity (INL). Packaged in a lead-free, 8-pin TSSOP for surface mounting.
PackageTSSOP
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Microchip MCP3202-CI/ST technical specifications.
General
| Package/Case | TSSOP |
| Conversion Rate | 100KS/s |
| Height | 1mm |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 375uA |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Channels | 2 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 100KS/s |
| Signal to Noise Ratio (SNR) | 72dB |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP3202-CI/ST Datasheet
Download the complete datasheet for Microchip MCP3202-CI/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

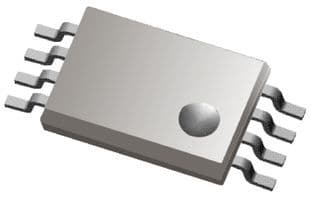

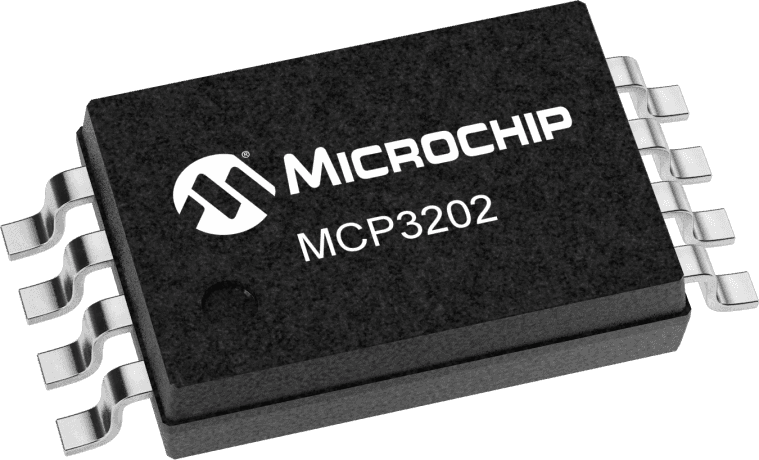

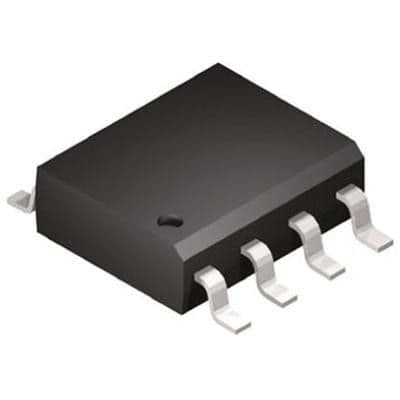

Product Images
