12-bit, 4-channel analog-to-digital converter (ADC) featuring a 100 kS/s sampling rate and single-ended input. This successive approximation register (SAR) ADC offers a 12-bit resolution with an integral nonlinearity of 2 LSB and a signal-to-noise ratio of 100 dB. Operating from a 2.7V to 5.5V supply, it utilizes an SPI serial interface and is available in a surface-mount SOIC package. Suitable for automotive applications, it operates within a temperature range of -40°C to 85°C.
PackageSOIC
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Microchip MCP3204T-CI/SL technical specifications.
General
| Package/Case | SOIC |
| Conversion Rate | 100KS/s |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | SPI, Serial, 4-WIRE |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Channels | 4 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Output Voltage | 4.1V |
| Package Quantity | 2600 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 100KS/s |
| Signal to Noise Ratio (SNR) | 100dB |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP3204T-CI/SL Datasheet
Download the complete datasheet for Microchip MCP3204T-CI/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

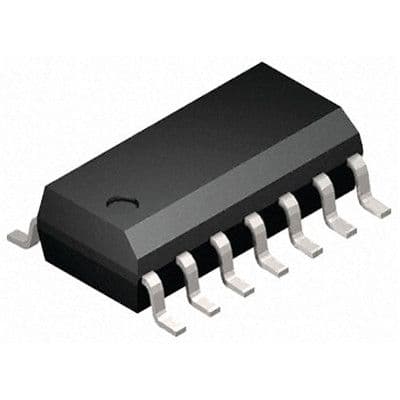

Product Images
