8-channel, 12-bit successive approximation analog-to-digital converter (ADC) with a 100 kS/s sampling rate. Features single-ended inputs, SPI serial interface, and 1LSB differential nonlinearity. Operates from a 2.7V to 5.5V supply voltage, with a temperature range of -40°C to 85°C. Packaged in a 16-pin PDIP for through-hole mounting.
PackagePDIP
Current320uA
MountingThrough Hole
PolarityUnipolar
Quick Jump:
Technical Specifications
Microchip MCP3208-CI/P technical specifications.
General
Package/Case
PDIP
Conversion Rate
100KS/s
Differential Nonlinearity
1LSB
Height
3.3mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
2LSB
Interface
SPI, Serial, 4-WIRE
Lead Free
Lead Free
Length
19.05mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of A/D Converters
1
Number of Bits
12
Number of Channels
8
Number of Converters
1
Number of Elements
1
Number of Inputs
8
Output Voltage
4.1V
Package Quantity
30
Packaging
Rail/Tube
Polarity
Unipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Signal to Noise Ratio (SNR)
100dB
Supply Current
320uA
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3208-CI/P Datasheet
Download the complete datasheet for Microchip MCP3208-CI/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

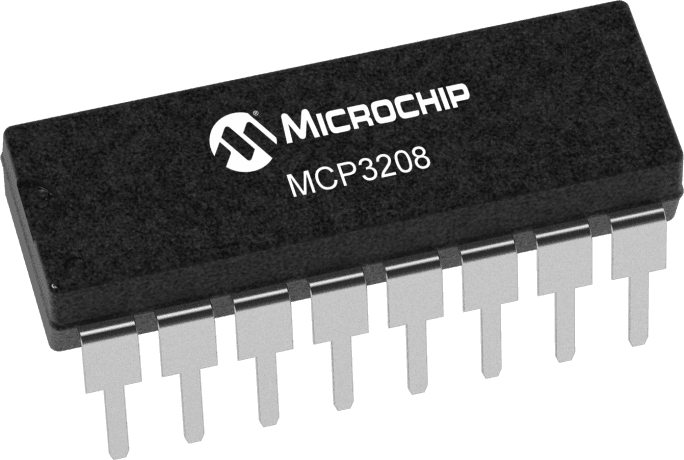

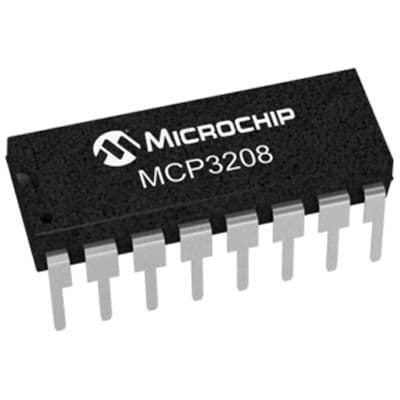

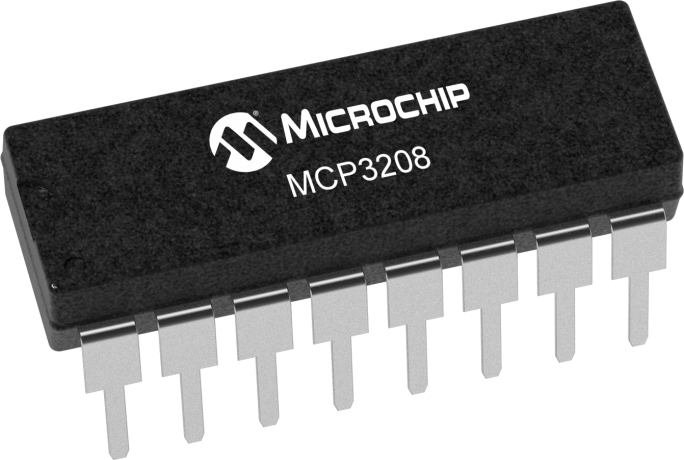

Product Images
