13-bit, 4-channel, bipolar SAR analog-to-digital converter (ADC) with a 100 kS/s conversion rate. Features differential input, SPI serial interface, and 80.02dB signal-to-noise ratio. Operates from 2.7V to 5.5V supply voltage with 300µA nominal supply current. Packaged in a 16-pin PDIP for through-hole mounting.
PackagePDIP
MountingThrough Hole
PolarityBipolar
Quick Jump:
Technical Specifications
Microchip MCP3304-BI/P technical specifications.
General
Package/Case
PDIP
Conversion Rate
100KS/s
Height
4.95mm
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial
Lead Free
Lead Free
Length
19.69mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Nominal Supply Current
300uA
Number of A/D Converters
1
Number of Bits
13
Number of Channels
4
Number of Converters
1
Number of Elements
1
Output Voltage
4.1V
Package Quantity
30
Packaging
Rail/Tube
Polarity
Bipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
13b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Signal to Noise Ratio (SNR)
80.02dB
Width
7.11mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3304-BI/P Datasheet
Download the complete datasheet for Microchip MCP3304-BI/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

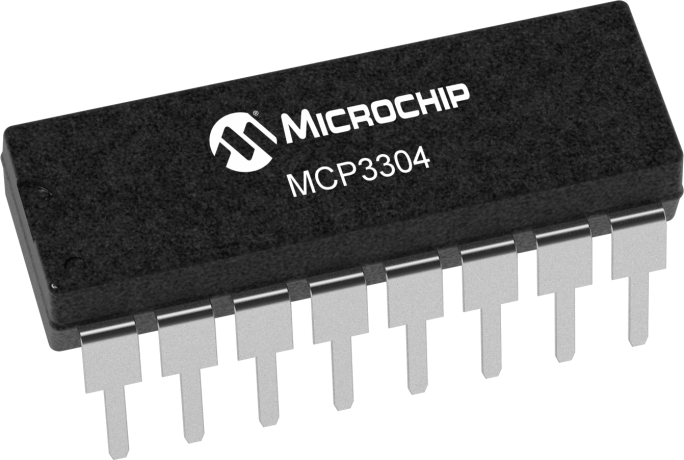

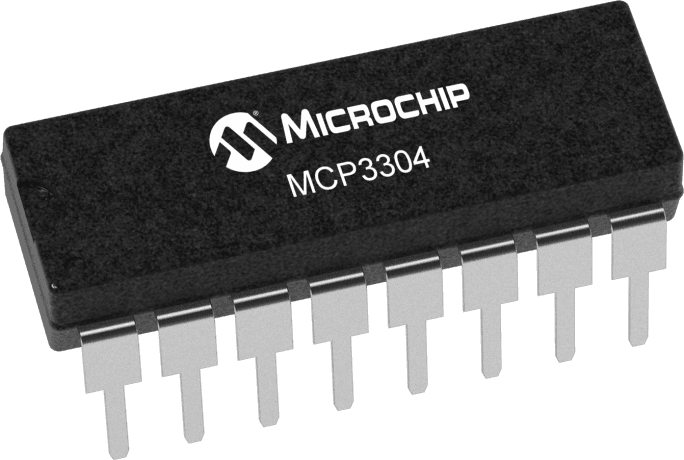

Product Images
