18-bit, 2-channel delta-sigma analog-to-digital converter (ADC) with a sampling rate of 3.75S/s. Features differential input, I2C and serial 2-wire interface, and bipolar polarity. Operates from a 2.7V to 5.5V supply voltage with a nominal supply current of 145uA. Packaged in an 8-pin SOIC surface mount case, this RoHS compliant component has a maximum operating temperature of 125°C.
PackageSOIC
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Microchip MCP3422A0-E/SN technical specifications.
General
Package/Case
SOIC
Conversion Rate
0.00375KS/s
Height
1.25mm
Input Type
DIFFERENTIAL
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
145uA
Number of A/D Converters
1
Number of Analog Inputs
2
Number of Bits
18
Number of Channels
2
Number of Converters
1
Number of Elements
1
Number of Inputs
2
Package Quantity
100
Packaging
Rail/Tube
Polarity
Bipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
18b
RoHS Compliant
Yes
Sampling Rate
3.75S/s
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3422A0-E/SN Datasheet
Download the complete datasheet for Microchip MCP3422A0-E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

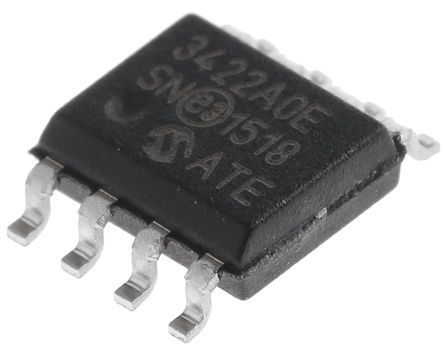

Product Images
