22-bit delta-sigma Analog-to-Digital Converter (ADC) with a 15 S/s sampling rate. Features a differential input and SPI serial interface. Operates with a supply voltage range of 2.7V to 5.5V, consuming 140µA nominal current. Packaged in an 8-pin MSOP (MO-187) for surface mounting, with dimensions of 3mm x 3mm x 0.85mm. Suitable for operation between -40°C and 125°C.
PackageMSOP
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Microchip MCP3550-60E/MS technical specifications.
General
Package/Case
MSOP
Conversion Rate
0.015KS/s
Height
0.85mm
Input Type
DIFFERENTIAL
Interface
SPI, 3-WIRE, Serial
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
140uA
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
22
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Polarity
Bipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
21.9b
Sampling Rate
15S/s
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3550-60E/MS Datasheet
Download the complete datasheet for Microchip MCP3550-60E/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

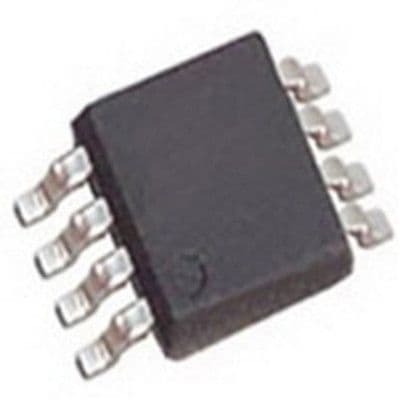

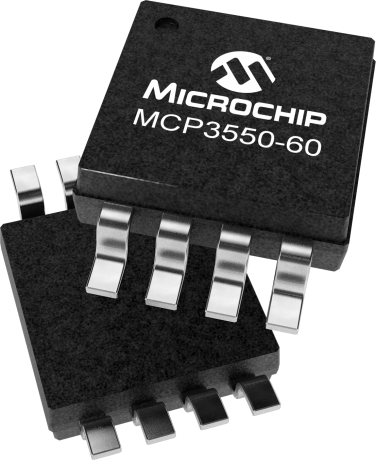

Product Images
