22-bit Analog-to-Digital Converter (ADC) with a 15 S/s sampling rate. Features a differential input type and SPI, 3-wire serial interface. Operates with a supply voltage range of 2.7V to 5.5V, consuming 140µA nominal supply current. Packaged in a lead-free SOIC case for surface mounting, with an operating temperature range of -40°C to 125°C.
PackageSOIC
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Microchip MCP3550-60E/SN technical specifications.
General
Package/Case
SOIC
Conversion Rate
0.015KS/s
Height
1.25mm
Input Type
DIFFERENTIAL
Interface
SPI, 3-WIRE, Serial
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
140uA
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
22
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Polarity
Bipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
21.9b
Sampling Rate
15S/s
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3550-60E/SN Datasheet
Download the complete datasheet for Microchip MCP3550-60E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

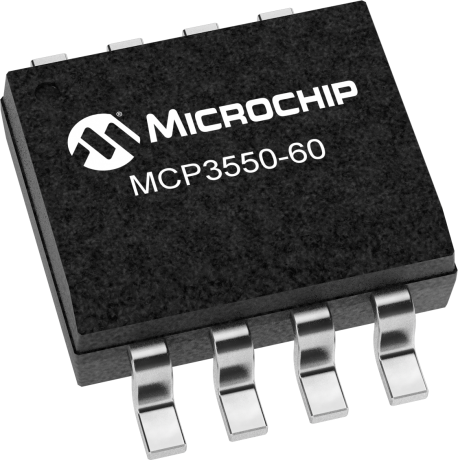

Product Images
