1-Channel Delta-Sigma Analog-to-Digital Converter (ADC) with 22-bit resolution and a 14 S/s sampling rate. Features differential input, SPI serial interface, and operates from a 2.7V to 5.5V supply voltage. This surface-mount device is housed in an 8-pin MSOP package, offering a wide operating temperature range of -40°C to 125°C.
PackageMSOP
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Microchip MCP3551-E/MS technical specifications.
General
Package/Case
MSOP
Conversion Rate
0.014KS/s
Height
0.95mm
Input Type
DIFFERENTIAL
Interface
SPI, 3-WIRE, Serial
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
120uA
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
22
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Package Quantity
100
Packaging
Rail/Tube
Polarity
Bipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
22b
RoHS Compliant
Yes
Sampling Rate
14S/s
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3551-E/MS Datasheet
Download the complete datasheet for Microchip MCP3551-E/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

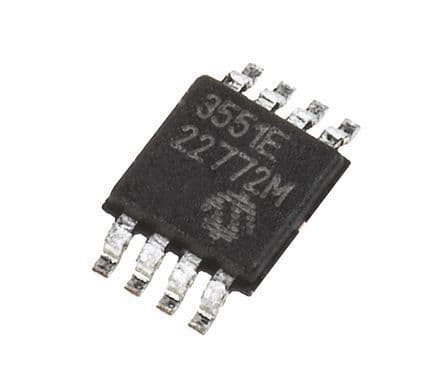

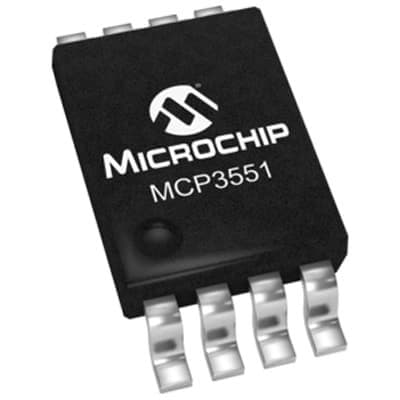

Product Images
