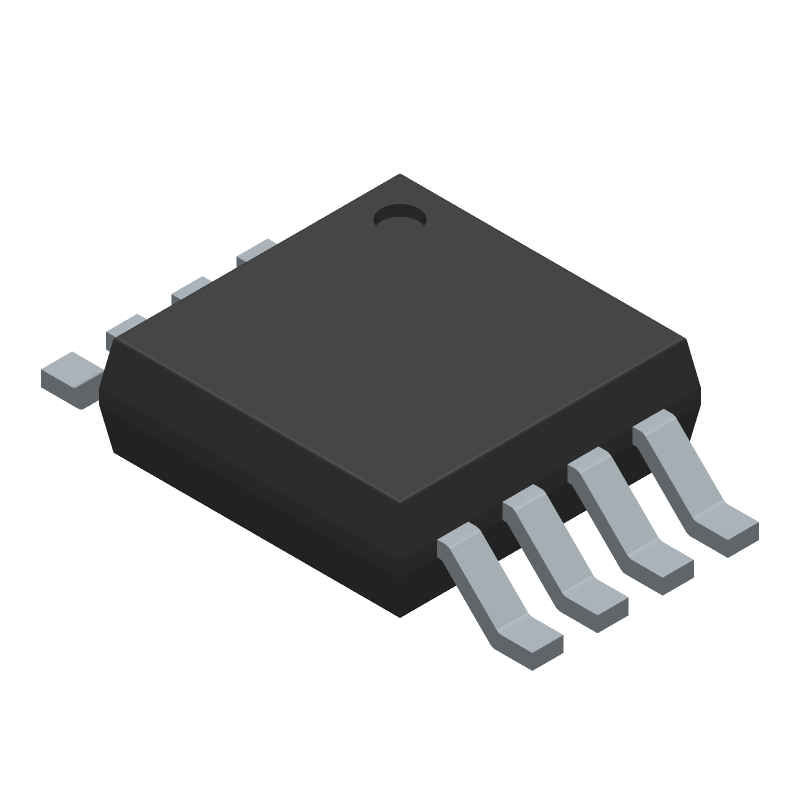

Single-channel, 22-bit delta-sigma Analog-to-Digital Converter (ADC) with a 60S/s sampling rate. Features differential input, SPI serial interface, and operates from a 2.7V to 5.5V supply. This surface-mount component is housed in an 8-pin MSOP package, offering bipolar polarity and a wide operating temperature range of -40°C to 125°C.
PackageMSOP
Current140uA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Microchip MCP3553-E/MS technical specifications.
General
Package/Case
MSOP
Conversion Rate
0.06KS/s
Height
0.95mm
Input Type
DIFFERENTIAL
Interface
SPI, 3-WIRE, Serial
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
22
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Package Quantity
100
Packaging
Rail/Tube
Polarity
Bipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
22b
RoHS Compliant
Yes
Sampling Rate
60S/s
Supply Current
140uA
Termination
SMD/SMT
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP3553-E/MS Datasheet
Download the complete datasheet for Microchip MCP3553-E/MS to view detailed technical specifications.
