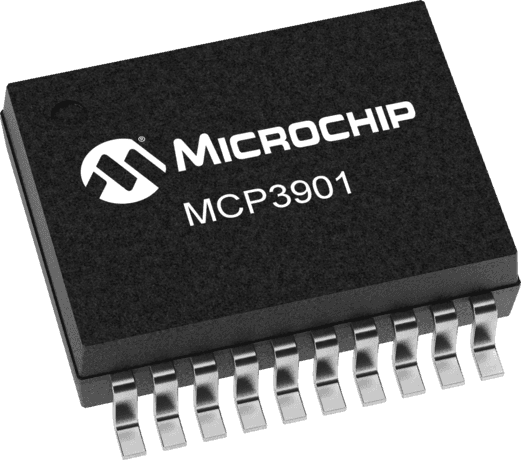

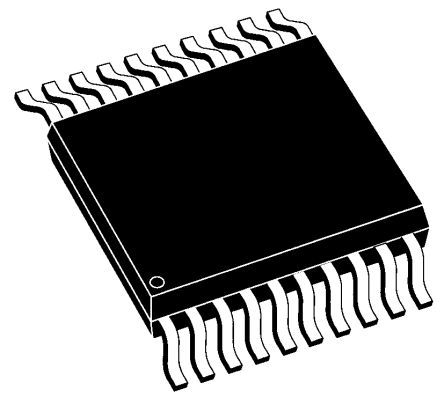

General purpose Analog Front End (AFE) with two 24-bit Analog-to-Digital Converters (ADCs). Features a 64 kS/s sampling rate and 91dB Signal-to-Noise Ratio (SNR). Operates with supply voltages from 2.7V to 5.5V and a maximum operating temperature of 85°C. Interface options include SPI, Serial, and Analog. Packaged in a 20-pin SSOP for surface mounting, with dimensions of 7.2mm length, 5.3mm width, and 1.75mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP3901A0-I/SS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP3901A0-I/SS technical specifications.
| Package/Case | SSOP |
| Conversion Rate | 64KS/s |
| Height | 1.75mm |
| Input Type | DIFFERENTIAL |
| Interface | SPI, Serial, Analog |
| Lead Free | Lead Free |
| Length | 7.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Bits | 24 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Package Quantity | 67 |
| Packaging | Rail/Tube |
| Power Consumption | 14mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 64KS/s |
| Signal to Noise Ratio (SNR) | 91dB |
| Width | 5.3mm |
| RoHS | Compliant |
