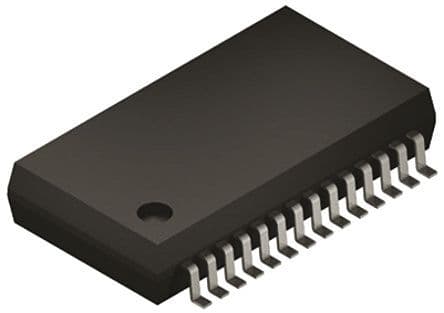

General purpose Analog Front End (AFE) with 6 channels, featuring 24-bit resolution and a 64 kS/s conversion rate. This surface-mount IC offers differential input and SPI serial interface, operating from a 4.5V to 5.5V supply. With a 91.5dB Signal to Noise Ratio (SNR) and a wide operating temperature range of -40°C to 85°C, it is housed in a 28-pin SSOP package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP3903-I/SS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Conversion Rate | 64KS/s |
| Height | 1.85mm |
| Input Type | DIFFERENTIAL |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of A/D Converters | 6 |
| Number of Bits | 24 |
| Number of Channels | 6 |
| Number of Converters | 6 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 64KS/s |
| Signal to Noise Ratio (SNR) | 91.5dB |
| Width | 5.6mm |
| RoHS | Compliant |
