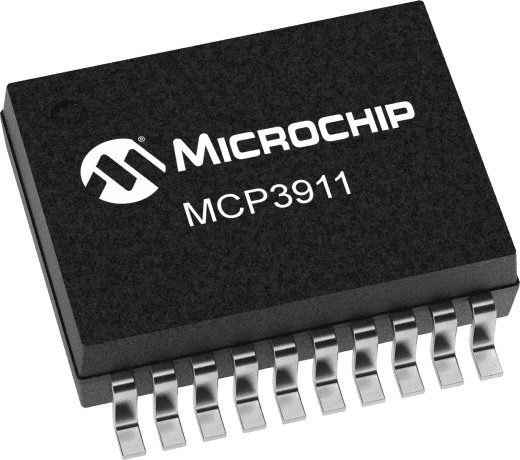

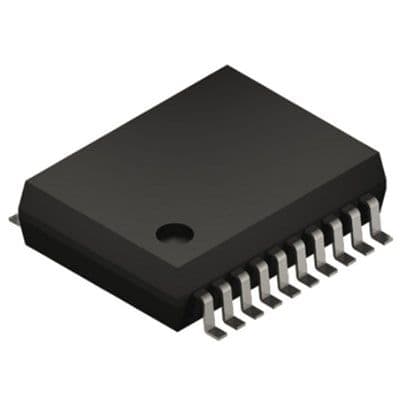

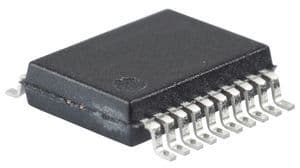

24-bit, 2-channel Analog Front End (AFE) IC featuring dual Analog-to-Digital Converters (ADCs) with a 125 kS/s conversion rate and 95dB Signal-to-Noise Ratio (SNR). Operates with a 3.3V supply voltage, supporting a range of 2.7V to 3.6V, and offers SPI serial interface communication. Packaged in a 20-pin SSOP with dimensions of 7.5mm length, 5.6mm width, and 1.85mm height, this component is RoHS compliant and operates across an automotive temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP3911A0-E/SS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Conversion Rate | 125KS/s |
| Data Rate | 125Kbps |
| Height | 1.85mm |
| Input Type | DIFFERENTIAL |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 7.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 8.9mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Number of A/D Converters | 2 |
| Number of Bits | 24 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Operating Supply Current | 4.4mA |
| Operating Supply Voltage | 3.3V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.2V |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 125KS/s |
| Signal to Noise Ratio (SNR) | 95dB |
| Width | 5.6mm |
| RoHS | Compliant |
