Digital potentiometer IC featuring 5kR resistance and 20% tolerance. This single-circuit, linear taper device offers 64 positions and a 2-wire serial interface. Operating from 1.8V to 5.5V with a typical 5V supply, it consumes 45uA. Packaged in a compact SOT-23 surface-mount case, it operates between -40°C and 125°C.
PackageSOT-23
Current45uA
Resistance5kR
MountingSurface Mount
Quick Jump:
Technical Specifications

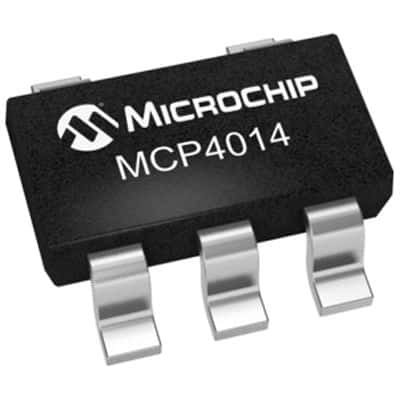

Microchip MCP4014T-502E/OT technical specifications.
General
Package/Case
SOT-23
Height
1.3mm
Interface
Serial, 2-Wire
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
64
Number of Taps
64
Operating Supply Voltage
5V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
5kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
45uA
Taper
Linear
Tolerance
20%
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4014T-502E/OT Datasheet
Download the complete datasheet for Microchip MCP4014T-502E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
