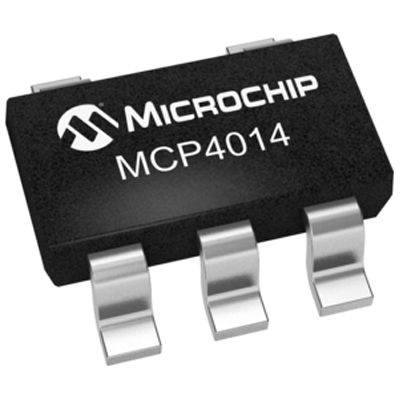

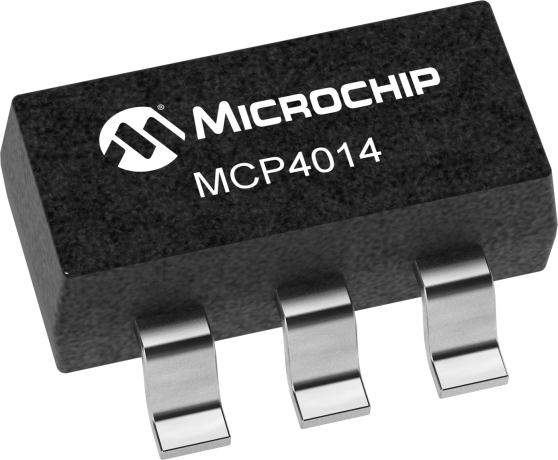

64-position, 50kR linear digital potentiometer with 20% resistance tolerance. Features a 2-wire serial interface and volatile memory. Operates from 1.8V to 5.5V with a typical supply current of 45uA. Packaged in a compact SOT-23 (SC-74A) surface-mount plastic package, measuring 3.1mm x 1.75mm x 1.3mm. Suitable for operation between -40°C and 125°C.
PackageSOT-23
Current45uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4014T-503E/OT technical specifications.
General
Package/Case
SOT-23
Height
1.3mm
Interface
Serial, 2-Wire
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
64
Number of Taps
64
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
45uA
Taper
Linear
Tolerance
20%
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4014T-503E/OT Datasheet
Download the complete datasheet for Microchip MCP4014T-503E/OT to view detailed technical specifications.
