10k Ohm, 128-position linear digital potentiometer with 20% resistance tolerance. Features I2C and 2-wire serial interface, operating from 1.8V to 5.5V with 80uA supply current. Volatile memory, single circuit, surface mount in a 6-pin SC-70 package (2mm x 1.25mm x 0.9mm). Suitable for automotive applications with a temperature range of -40°C to 125°C.
PackageSC
Current80uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4017T-103E/LT technical specifications.
General
Package/Case
SC
Height
0.9mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
128
Number of Taps
128
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
80uA
Taper
Linear
Tolerance
20%
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4017T-103E/LT Datasheet
Download the complete datasheet for Microchip MCP4017T-103E/LT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

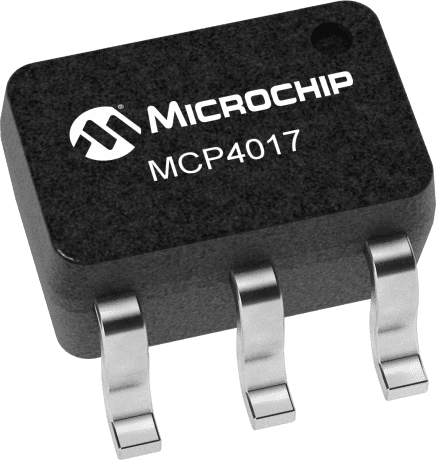

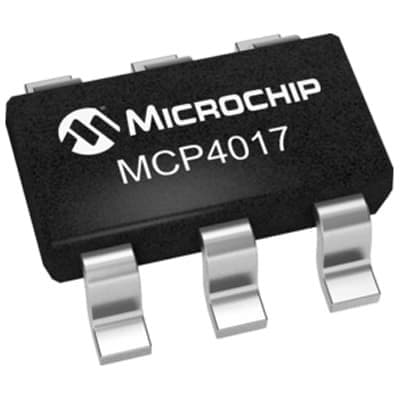

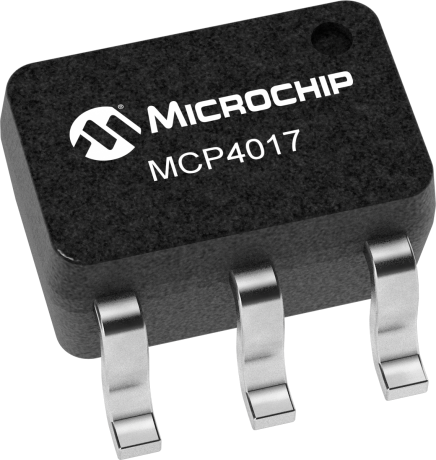

Product Images
