128-position, 50kΩ linear digital potentiometer with 20% resistance tolerance. Features I2C and 2-wire serial interface, operating from 1.8V to 5.5V supply. This volatile memory component is housed in a 6-pin SC-70 surface mount package, measuring 2mm x 1.25mm x 1mm. Suitable for automotive applications with a maximum operating temperature of 125°C.
PackageSC
Current80uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4018T-503E/LT technical specifications.
General
Package/Case
SC
Height
1mm
Interface
I2C, Serial, 2-Wire
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
128
Number of Taps
128
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
80uA
Taper
Linear
Tolerance
20%
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4018T-503E/LT Datasheet
Download the complete datasheet for Microchip MCP4018T-503E/LT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

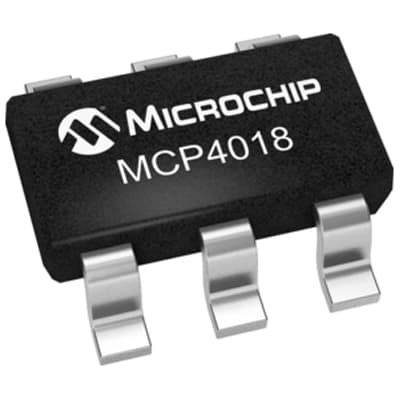

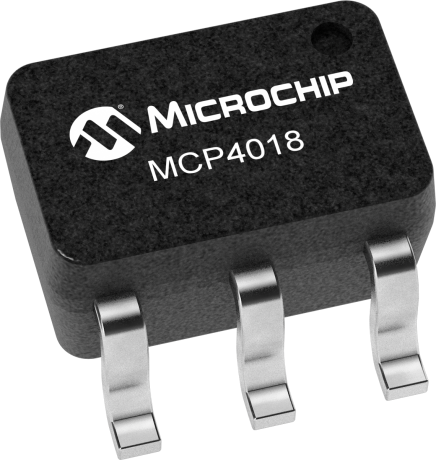

Product Images
