128-position, 50kΩ linear digital potentiometer with 20% resistance tolerance. Features a 2-wire serial control interface and operates from 1.8V to 5.5V supply voltage. This single-circuit, volatile memory device is housed in a compact SC-70 (PDSO5) surface-mount package, measuring 2.25mm x 1.35mm x 1mm. Suitable for operation across a wide temperature range of -40°C to 125°C.
PackageSC
Current80uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip MCP4019T-503E/LT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip MCP4019T-503E/LT technical specifications.
General
| Package/Case | SC |
| Height | 1mm |
| Interface | I2C, Serial, 2-Wire |
| Length | 2.25mm |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Positions | 128 |
| Number of Taps | 128 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 50kR |
| Resistance Tolerance | 20% |
| RoHS Compliant | Yes |
| Supply Current | 80uA |
| Taper | Linear |
| Tolerance | 20% |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP4019T-503E/LT Datasheet
Download the complete datasheet for Microchip MCP4019T-503E/LT to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

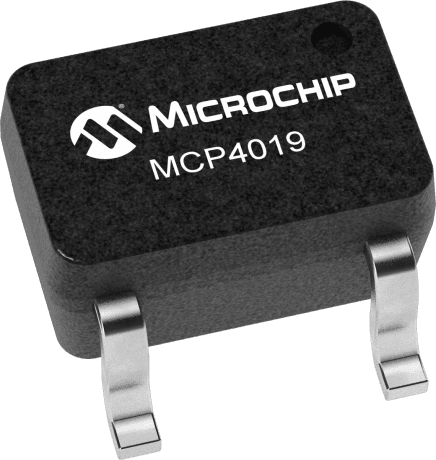

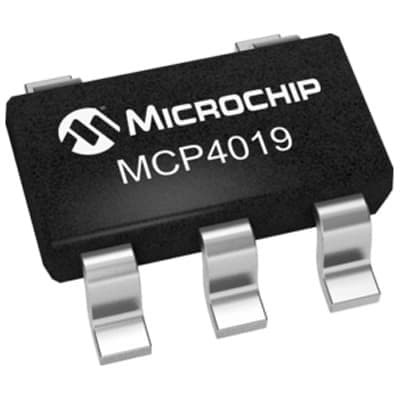

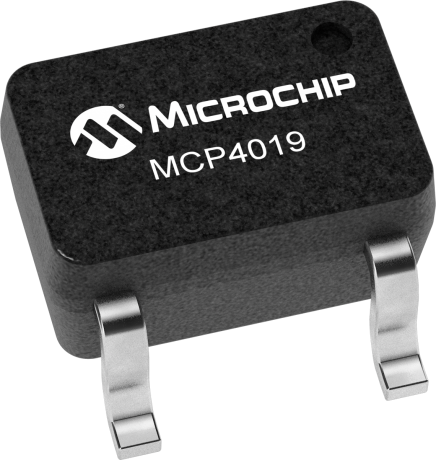

Product Images
