64-position, 50kΩ linear digital potentiometer with non-volatile EEPROM memory. This single-circuit, single-element device features a 2-wire serial control interface and operates from a 2.7V to 5.5V supply. Packaged in an 8-pin SOIC with dimensions of 4.9mm x 3.9mm x 1.25mm, it supports surface mounting and operates within a temperature range of -40°C to 125°C. RoHS and lead-free compliant.
PackageSOIC
Current45uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4021-503E/SN technical specifications.
General
Package/Case
SOIC
Control Interface
SERIAL
Height
1.25mm
Interface
Serial, 2-Wire
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
64
Number of Taps
64
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
45uA
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4021-503E/SN Datasheet
Download the complete datasheet for Microchip MCP4021-503E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

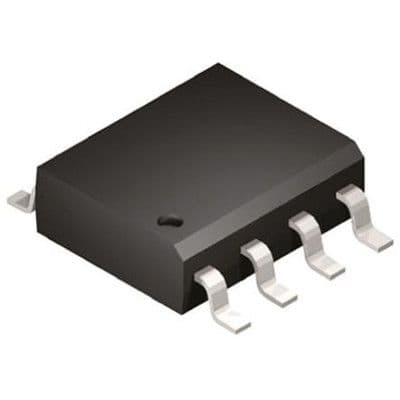

Product Images
