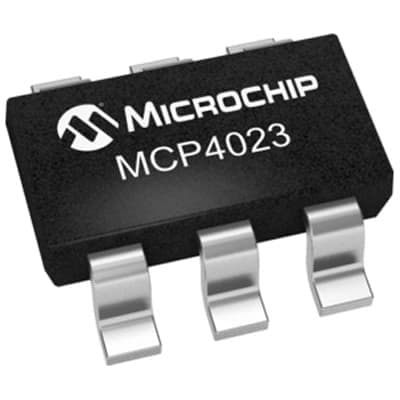

10kR linear digital potentiometer with 64 positions, featuring a 2-wire serial interface. This single-circuit, non-volatile EEPROM component operates from a 2.7V to 5.5V supply and offers a wide temperature range of -40°C to 125°C. The surface-mount SOT-23 package, measuring 1.75mm width, 3.1mm length, and 1.3mm height, is supplied on tape and reel. It boasts a low 45uA supply current and 20% resistance tolerance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP4023T-103E/CH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP4023T-103E/CH technical specifications.
| Package/Case | SOT-23 |
| Height | 1.3mm |
| Interface | Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Operating Temperature | 125°C |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Positions | 64 |
| Number of Taps | 64 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| RoHS Compliant | Yes |
| Series | WiperLock™ |
| Supply Current | 45uA |
| Taper | Linear |
| Tolerance | 20% |
| Width | 1.75mm |
| RoHS | Compliant |
