64-position digital potentiometer with 2.1kΩ resistance and 20% tolerance. Features a 2-wire serial interface for increment/decrement control. Operates from a 2.7V to 5.5V supply voltage, with a typical 5V operating voltage and 45µA supply current. Non-volatile EEPROM memory stores settings. Packaged in a compact 5-pin SOT-23 surface-mount package.
PackageSOT-23
Current45uA
Resistance2.1kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4024T-202E/OT technical specifications.
General
Package/Case
SOT-23
Height
1.3mm
Interface
Serial, 2-Wire
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
64
Number of Taps
64
Operating Supply Voltage
5V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
2.1kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
45uA
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4024T-202E/OT Datasheet
Download the complete datasheet for Microchip MCP4024T-202E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

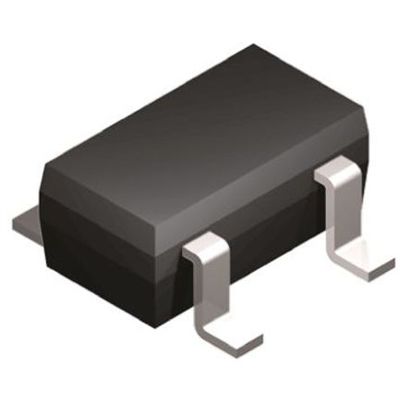

Product Images
