128-position, 5kR linear digital potentiometer with 20% resistance tolerance. Features a 2-wire serial control interface and operates from 1.8V to 5.5V supply voltage. This single-channel, volatile memory component is housed in a compact SC-70 (PDSO6) surface-mount package, measuring 2mm x 1.25mm x 0.9mm. Maximum operating temperature is 125°C, with a typical supply current of 45uA. RoHS compliant and lead-free.
PackageSC
Current45uA
Resistance5kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP40D17T-502E/LT technical specifications.
General
Package/Case
SC
Height
0.9mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Positions
128
Number of Taps
128
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
5kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
45uA
Taper
Linear
Tolerance
20%
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP40D17T-502E/LT Datasheet
Download the complete datasheet for Microchip MCP40D17T-502E/LT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

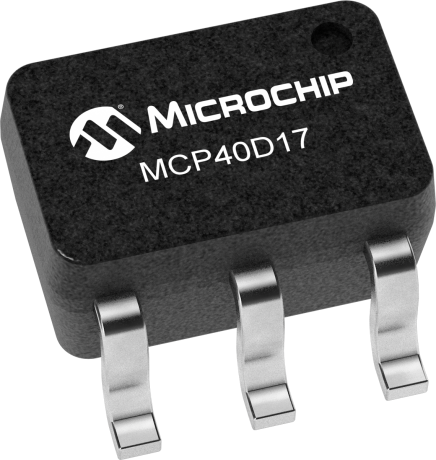

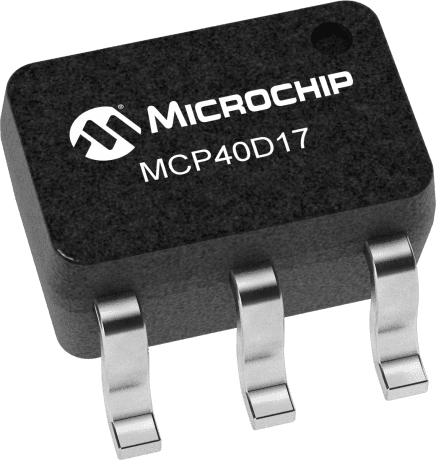

Product Images
