100kΩ digital potentiometer with 256 positions, featuring a linear taper and volatile memory. This single-circuit IC supports SPI and serial interfaces, operating from a 2.7V to 5.5V supply. Packaged in an 8-pin SOIC with dimensions of 4.9mm x 3.9mm x 1.25mm, it is designed for surface mounting. The component offers a wide operating temperature range of -40°C to 125°C and is RoHS compliant.
PackageSOIC
Current340uA
Resistance100kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP41100-E/SN technical specifications.
General
Package/Case
SOIC
Height
1.25mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
256
Number of Taps
256
Package Quantity
100
Packaging
Rail/Tube
Quiescent Current
10nA
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100kR
Resistor Type
Potentiometer
RoHS Compliant
Yes
Supply Current
340uA
Tolerance
20%
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP41100-E/SN Datasheet
Download the complete datasheet for Microchip MCP41100-E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

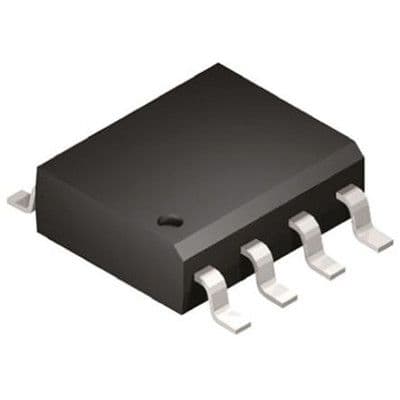

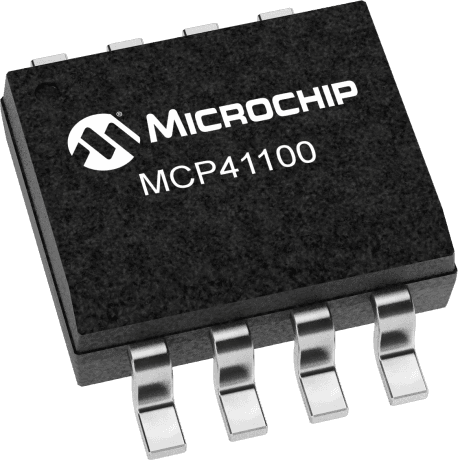

Product Images
