Microchip
MCP4131-503E/MS
50K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 129 POSITIONS, PDSO8, PLASTIC, MSOP-8
PackageMSOP
Current1mA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4131-503E/MS technical specifications.
General
Package/Case
MSOP
Interface
SPI, Serial
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Resistance
50kR
RoHS Compliant
Yes
Supply Current
1mA
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4131-503E/MS Datasheet
Download the complete datasheet for Microchip MCP4131-503E/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

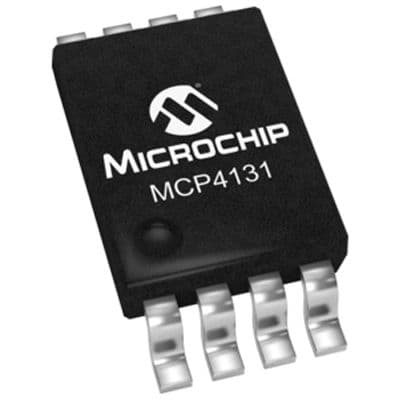

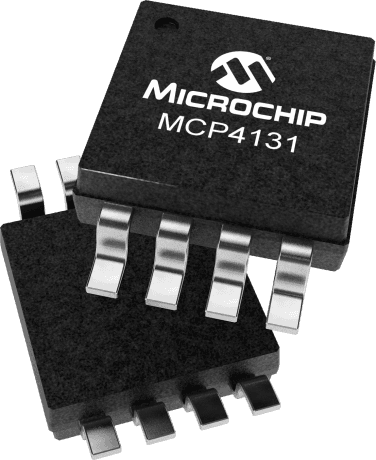

Product Images
