Microchip

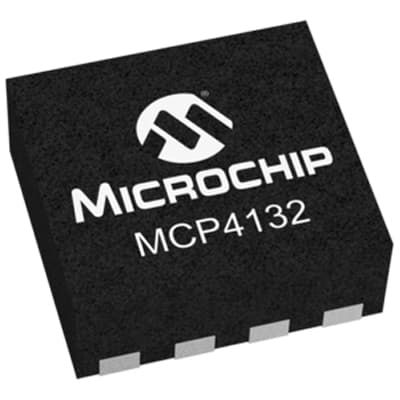

MCP4132-104E/MF
100K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 129 POSITIONS, PDSO8, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8
PackageDFN EP
Current1mA
Resistance100kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4132-104E/MF technical specifications.
General
Package/Case
DFN EP
Interface
SPI, Serial
Max Operating Temperature
125°C
Memory Type
Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
120
Packaging
Rail/Tube
Radiation Hardening
No
Resistance
100kR
RoHS Compliant
Yes
Supply Current
1mA
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4132-104E/MF Datasheet
Download the complete datasheet for Microchip MCP4132-104E/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
