100kΩ digital potentiometer with 128 positions and 129 taps, featuring an SPI serial interface for increment/decrement control. This single-circuit, volatile memory device operates from 1.8V to 5.5V, with a typical 5V supply voltage and 1mA supply current. Packaged in a through-hole PDIP-8 (0.300 inch) plastic DIP-8, it offers a wide operating temperature range of -40°C to 125°C.
PackagePDIP
Current1mA
Resistance100kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP4132-104E/P technical specifications.
General
Package/Case
PDIP
Height
0.195inch
Interface
SPI, Serial
Length
10.16mm
Max Operating Temperature
125°C
Memory Type
Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Through Hole
Number of Circuits
1
Number of Elements
1
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
1mA
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4132-104E/P Datasheet
Download the complete datasheet for Microchip MCP4132-104E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

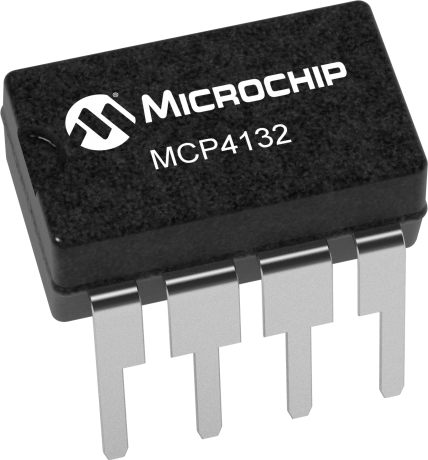

Product Images
