128-position, 5kR digital potentiometer with 129 taps. Features SPI and serial 4-wire interface for increment/decrement control. Operates from 1.8V to 5.5V with a 5V nominal supply voltage. Non-volatile EEPROM memory stores settings. Packaged in a through-hole PDIP-8 (0.300 inch) with a 125°C maximum operating temperature.
PackagePDIP
Current550uA
Resistance5kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP4141-502E/P technical specifications.
General
Package/Case
PDIP
Height
0.195inch
Interface
SPI, Serial, 4-WIRE
Length
10.16mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile, , EEPROM
Min Supply Voltage
1.8V
Mount
Through Hole
Number of Circuits
1
Number of Elements
1
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
5kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
550uA
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4141-502E/P Datasheet
Download the complete datasheet for Microchip MCP4141-502E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

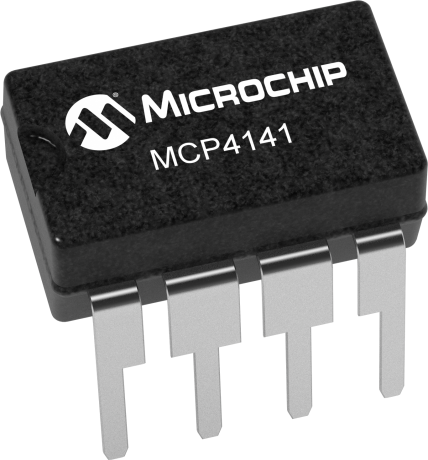

Product Images
